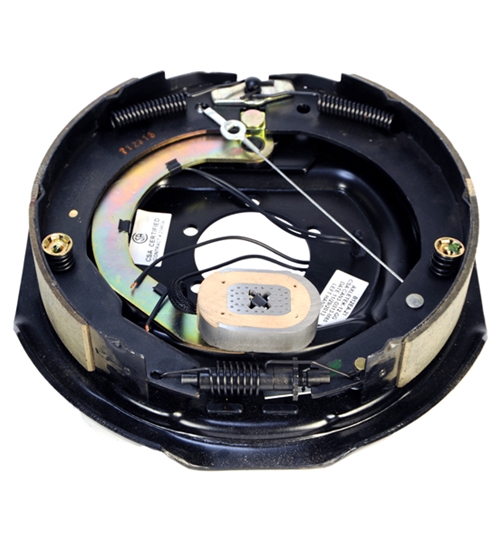

x 2" Left Hand electric complete brake assembly. 6,000-7,000lb
capacity per pair. Mounts with 5 bolts (not included). Brakes
automatically adjust to deliver optimum performance and braking power.
Reduce stopping distances 50 percent more than other brakes. Save time
and money. Proper adjustment leads to better brake efficiency. Uses 12" Hub/Drums.
Bolts-7-5 and washers-38LW not included.
These components have passed the CSA Standard CAN3-D313-M85 For Trailer
Running Gear, a stringent standard mandated by the Government to assure
brake effectiveness and structural integrity of the components.
ISO/TS 16949:2002 certified
• Fits standard 6,000lb-7,000lb axle with a 5 bolt pattern on the mounting flange.
• Left Hand(driver's side)
• Complete assembly ready to bolt on and wire
• For use with a 12" inside diameter drum
• The shoes are 2" wide
• Mounting nuts included(5ea 38N)
To determine the size of the brake, you need 2 measurements. The first
is the diameter of the brake(D). The second is the width of the
shoe(W). It is good to take note of how many mounting bolts the brake
