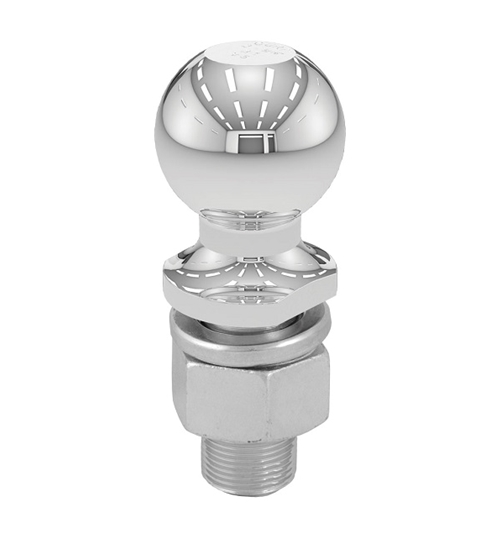

Fits 2 5/16" couplers and accepts up to 10,000 lbs. GTW
Constructed from high-strength, hot-forged steel
Protected by a durable chrome-plated finish
Zinc-plated hex nut and helical lock washer for secure mounting
Features fine threads for superior holding strength
Tested for safety to meet U.S. VESC V-5 specifications
Note: The mounting platform must be at least 3/8" thick, and the hole
size must not be more than 1/16" larger in diameter than the threaded
shank.
Ball Capacity: 10,000 LB
Ball Diameter: 2 5/16 IN
Shank Diameter: 1 1/4 IN
Shank Length: 2 5/8 IN
Shank Rise: 0 IN
Torque: 450 FT LB
Finish: Chrome
