Details

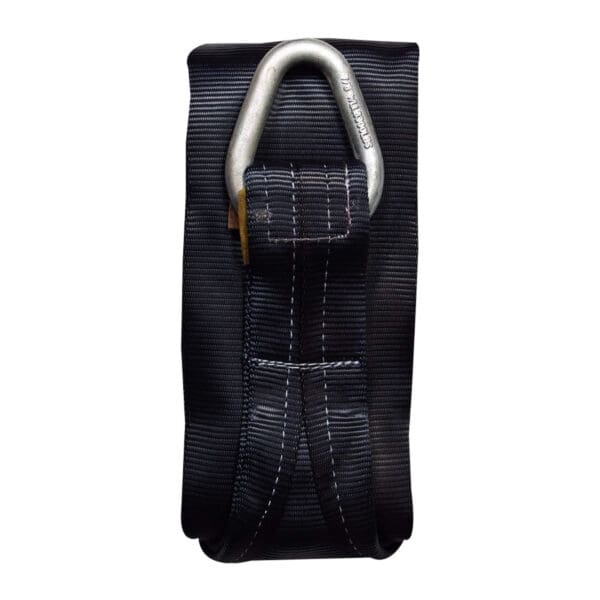

Black Weighted Boat Lift Sling

The Black Weighted Boat Lift Sling is a premium marine-grade polyester sling designed specifically for boat lifting applications. The marine slings come in three widths: 4 inches, 6 inches, and 8 inches, all made of polyester. They can lift 8,400 lbs., 12,000 lbs., and 12,000 lbs. respectively, but their working load limits are 4,200 lbs., 6,000 lbs., and 6,000 lbs.

The slings have a galvanized pear ring and a double kneel pad. Lead weights are sewn into the kneel pad to keep the sling in shape and prevent it from floating. However, these weights aren’t enough to provide proper tension on the boat lift cable. It’s recommended to use extra cable weights for better tension. Remember, these slings are not safe for lifting people or overhead loads.

What is WLL?

Working Load Limit (WLL) is the maximum working load specified by the manufacturer. This load represents a mass or force that is much less than that required to make the lifting equipment fail or yield, (known as the Minimum Breaking Load – MBL). SWL or WLL are calculated by dividing the MBL by a safety factor ( SF).

Specifications

Sling Width:	4 in. W	6 in. W	8 in. W
Sling Material:	Polyester	Polyester	Polyester
Lift Rating (basket):	8,400 lbs.	12,000 lbs.	12,000 lbs.
Rated Capacity:	WLL	WLL	WLL
WLL Rated Capacity:	4,200 lbs.	6,000 lbs.	6,000 lbs.
Pear Ring Thickness:	5/8 in.	3/4 in.	7/8 in.
Pear Ring Material:	Galvanized	Galvanized	Galvanized
Kneel Pad:	Double	Double	Double
Type:	MS1 x 94P	MS1 x 94P	MS1 x 94P
Weights:	Sewn-in	Sewn-in	Sewn-in
Weight Location:	Kneel pad	Kneel pad	Kneel pad
Weight Material:	Lead	Lead	Lead
The marine slings have lead weights sewn into the double kneel pad. The weights help keep the shape of the sling and help keep it from floating. However, the weights are not enough to keep adequate tension on the boat lift cable. We recommend using additional cable weights to keep more tension on the cable.
NOT FOR LIFTING HUMANS OR OVERHEAD LOADS.
