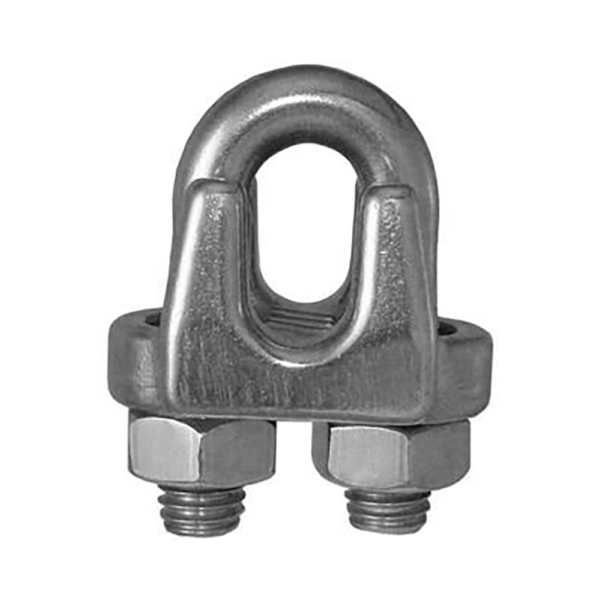

Stainless Malleable Wire Rope Clips
The Stainless Malleable Wire Rope Clips are important for keeping wire ropes securely fastened. They’re made of stainless steel, so they’re strong and rust-resistant.
When installing them, make sure the saddle and nuts are on the opposite side of the cable’s end. Keep all the clips on the same side and align the loops with the cable’s end for strength and stability.
Remember, the manufacturer doesn’t offer a warranty beyond the purchase date. So, be careful and follow safety guidelines during installation and use.
These clips are mainly for non-critical jobs. For important tasks, follow guidelines from organizations like ASME, OSHA, and ASTM, which recommend using stronger forged clamps.
The working load limit depends on factors like the load and where it’s used. Aim for at least a 5:1 safety margin when calculating it.
These clips work well with 7 x 19 aircraft cables but not for airplane controls.
There are two clamp styles: drop forged and malleable iron. Drop forged ones are stronger. The ones included with these clips are made from stainless steel.
Product Overview
- Stainless Malleable Wire Rope Clips for cable termination.
- Made from durable stainless steel for corrosion resistance.
- Secure installation with saddle and nuts on opposite side.
- Not suitable for critical applications; use forged clamps.
- User responsibility to determine working load limit for applications.
- Compatible with 7 x 19 aircraft cables.
- Drop-forged clamps offer greater strength; malleable iron for non-critical.
- Never use for overhead lifting or suspending.
