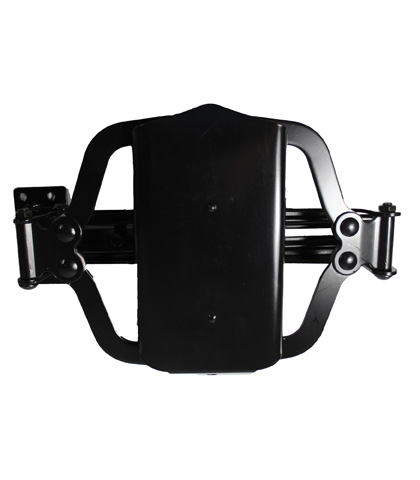

TB100 Turtleback Gate Closer
Gently closes both small and large gates up to 125lbs.
Pushes gate closed
Adjustable closing speed
Can be installed on top, bottom or middle of gate
Recommended for pool, garden and barrier gates
Can be used on lightweight (non fire-rated) doors
Works best on gates with in-line/flush hinges
To retain product warranty & restrict gate opening angle, a gate stop must be installed
LockeyUSA Turtle Back TB100 Hydraulic Gate closer must mount on the
hinge side/pull side of the gate in order to push the gate closed. The
TB100 works best if the gate has in-line/flush hinges flush with the
gate post with 1″ or less gap.
Dimensions & Specifications
Dimensions: 7 1/2″ L x 13″ W x 2 1/2″ D
Mounting Bracket Dimensions: 3 1/4″ x 1 3/4″
Max. Gate Weight: 125 lbs.
Max. Gate Width: 54″
Max. Opening Angle: 90 degrees
Min. Operating Temperature: 10 degrees
Max. Operating Temperature: 110 degrees
Type of Gate Material: Vinyl, Wood, Steel, Chain Link
Closing/Latching Method: Hydraulic
Hinge Arrangements: In-line/flush hinges
Opening Pressure: Variable, depending on gate size
--Turtle Back Closer is NOT a hinge. It is an automatic gate closer. Hinges are still required.
--Self-closing unit complies with pool gate legislation restrictions.
--Closes large or small gates and doors up to 150lbs. - easily, gently and smoothly
--No more slamming gates.
--Can be used for indoor or outdoor gates and doors.
--Easily installed - no special skills required.
--Self-contained unit to protect gate or door from strain or pressure.
--No more wear than closing by hand - a special feature found only with the Kant-Slam unit.
--Easy adjusting screw regulates closing speed.
--Installs on side, top, middle, or bottom of right- or left-hand gate or door.
--Hydraulic action gives ample closing force at the latching point while keeping movement gentle and smooth.
--No noise - no hissing sound - no tremendous bang upon impact.
--Low maintenance costs and increased operating efficiency.
