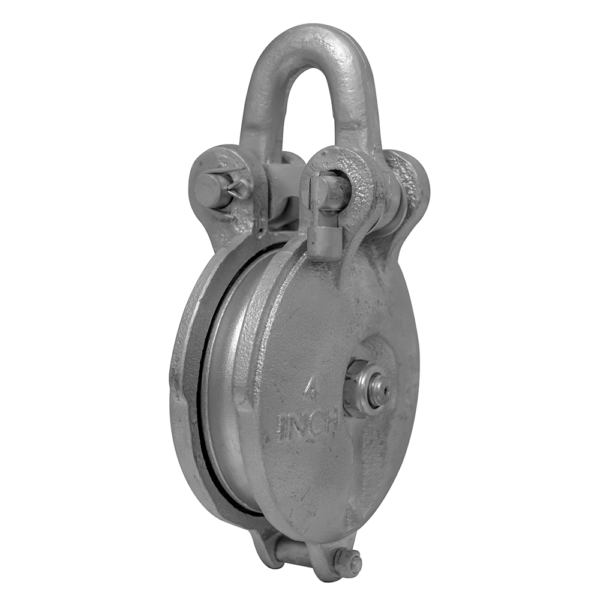

4 in. 3 Ton Snatch Block
The 4-inch snatch block is labeled with a 3-ton rating, meaning it can handle up to 6,000 lbs. It’s made of sturdy steel with a galvanized finish for corrosion resistance. The sheave, measuring 4 inches in size, has a 1/2-inch bore and groove for cables up to 1/2 inch thick. The shackle is 3 inches by 3 inches by 5/8 inch, with two 1/2-inch safety pin holes. The quick-release safety pin extends to 3 1/4 inches by 1/2 inch when fully extended. The yarding block is 6 1/2 inches by 5 inches by 3 1/4 inches, with a 1/4-inch grease fitting and a cast-protected bottom bolt measuring 1 3/4 inches by 1/4 inch.
Specifications
| Size | 4″ | Stamp Rating | 3 Ton |
| Weight Capacity | 6,000 lbs | Material | Steel |
| Finish | Galvanized | Sheave Size | 4″ x 3/4″ |
| Sheave Bore | 1/2″ | Sheave Cable Groove | 1/2″ |
| Shackle Dimensions | 3″ x 3″ x 5/8″ | Safety Pin Holes | 2 |
| Safety Pin Hole Size | 1/2″ | Quick Release Size | 3 1/4″ x 1/2″ (Fully Extended) |
| Yarding Block Dimensions | 6 1/2″ x 5″ x 3 1/4″ | Grease Fitting Size | 1/4″ (Cast Protected) |
| Housing Bottom Bolt | 1 3/4″ x 1/4″ (Cast Protected) | Cable Diameter | Up to 1/2″ |
Product Overview
- Stamp Rating: 3 ton / 6,000 lbs.
- 3-ton capacity (6,000 lbs)
- Hot-dipped galvanized finish
- Accepts up to 1/2" cable
- 4" sheave for smooth operation
- Breakaway shackle for added safety
- Factory-installed grease fitting
- Compact and easy to install
- Sturdy steel construction
- Corrosion-resistant and long-lasting
- Suitable for boat lift applications
- Quick-release safety pin feature
- Versatile and durable design
- Convenient size and weight
- Reliable performance for lifting
- Compatible with rigging hardware
- Protected grease fitting for lubrication
- Enhances cable redirection capabilities
- Secure housing for sheave stability
- Suitable for medium-duty tasks
