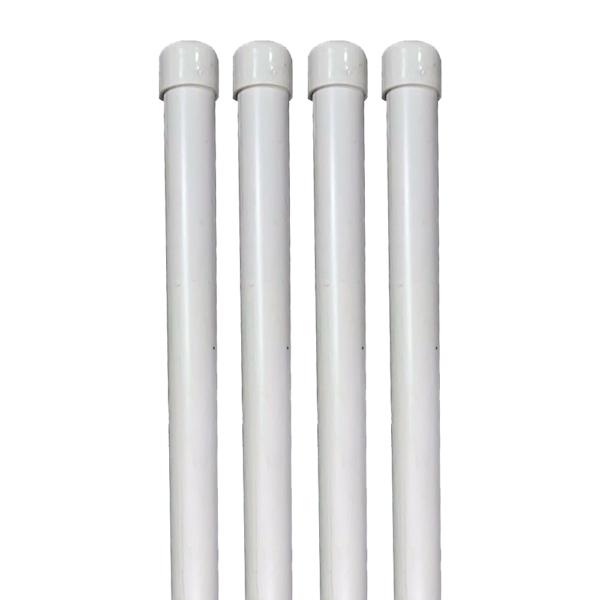

Boat Cradle PVC Guidepost With Caps

Make docking your boat safer and easier with the Boat Cradle Guidepost. These posts help guide your boat into place and keep it steady during cradle docking. They also make it easier to see where your boat should go.

Each guidepost is made from strong Schedule 40 PVC (1120 Type 1). It can handle rough weather, sun, and years of use on the water. The outer tube is 2 3/8 inches wide, and the inner tube is 2 inches wide, with a wall thickness of 3/16 inch. This makes the post strong and sturdy.

At the top, each post has a white PVC cap made from ASTM D 2665-certified material. The cap has a ¼-inch hole that lets water drain out. This keeps water from building up inside the pipe when lifting or lowering your boat. The cap is easy to see and stays firmly in place—even in bad weather or low light.

Guidepost bumpers, mounting brackets, and stanchions are not included.

Specifications

Material:	PVC	Rating:	ASTM D 2665
Compound:	PVC 1120 Type 1 Sch. 40	Width:	2 3/8 in. (2 in. ID)
PSI:	@ 23° C	Thickness:	0.1875 in. (3/16 in.)
Top Cap Modification:	Drilled	Length:	Varies
Hole Size:	0.25 in. (1/4 in.)	Color:	White
Hole Reason:	Drain Water	Fits:	BH-USA Guidepost Stanchions

Product Overview

Drilled hole in the cap allows water to drain
Made from PVC with cap installed at one end of the pipe
Fits on BH-USA guidepost stanchions mounted to boat cradles
Various sizes for shorter or taller guideposts
2 3/8 in. OD (2 in. ID) Sch. 40 PVC pipe
Guideposts only, no mounting brackets included.
