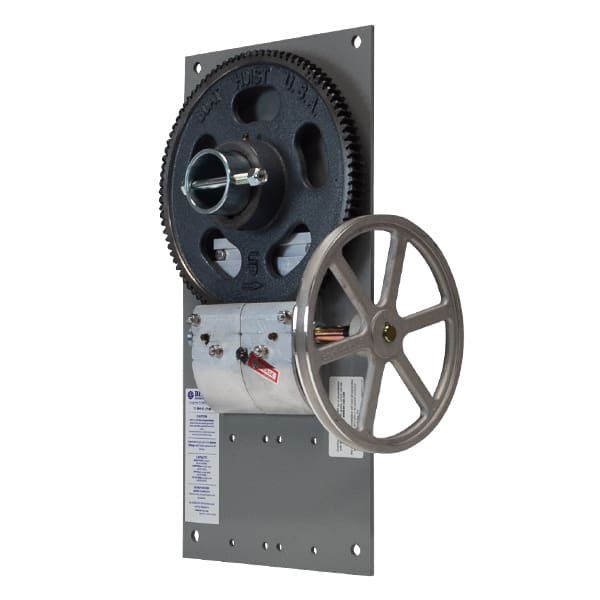

6,500 lb. Deluxe Gear Plate Assembly

The 6,500 lb. Deluxe Gear Plate Assembly is a high-quality, heavy-duty component designed to deliver years of reliable performance in flat-plate boat hoist systems. It can lift up to 6,500 pounds when used with a 1 HP HD motor, 4,500 pounds when used with a 1 HP motor. and 3,500 pounds when used with a 3/4 HP motor. This gear plate has been used for over 15 years on BH-USA Flat Plate hoists. Constructed from durable materials to withstand the demands of outdoor use, the assembly is easy to install and maintain.

Your choice of backplate in 1/4 in. aluminum, 1/2 thick aluminum, galvanized steel or powder-coated steel. It features no steel-on-steel moving parts, reducing wear and extending the life of the assembly. It comes fully assembled with a 96-tooth cast iron worm gear and extended block bronze worm assembly equipped with 1/4-inch easy-reach grease fittings for convenient maintenance. Includes a 10 in. aluminum die-cast single hoist pulley and 34-inch drive belt. The gear plate has standard flat-plate mounting holes, offering compatibility with most boat hoist setups.

Each unit is fully assembled and tested under load by the manufacturer before shipping and is backed by a lifetime warranty for added peace of mind.

Deluxe Series
Name:	BH-35	BH-45	BH-65
GPA:	6,500 lbs	6,500 lbs	6,500 lbs
HP:	3/4	1	1
Duty:	Standard	Standard	HD
Worm:	Bronze	Bronze	Bronze
96 Tooth:	Cast Iron	Cast Iron	Cast Iron
Block:	Extended	Extended	Extended
Pulley:	Single	Single	Single
All Flat-Plate Hoists use painted or stainless Elite Motors with base

Extended Block Worm Assembly Never use the same material for both worm gears. The use of steel-on-steel or bronze-on-bronze is not recommended for flat-plate hoists. Return policy.

Specifications

General Overview
Rated Capacity:	6500 lbs	Test:	Straight Line
Plate Dimensions:	12 in. L x 24 in H	Plate Thickness:	1/4 in. – 1/2 in.
Bull Hear Ratio:	96:1	GPA Warranty:	Lifetime
96 Tooth Cast Iron Worm Gear
SKU:	89101P	Material:	Cast Iron
Diameter:	12 3/4 in.	Gear Bore (without sleeve):	2.875 in.
Extended Block Worm Assembly
SKU:	75616	Worm Material:	Bronze
Thread:	Single	Thread Direction:	Right hand
Worm Diameter:	1 3/4 in	Worm Bore:	.754 in
Driveshaft Material:	Steel	Driveshaft Length:	11 3/4 in.
Grease Fittings:	3 – 1/4 in	SKU:	BH07297
Collars Included:	2	Collar Set Screw:	5/16 in.
10 in. Aluminum Die-Cast Hoist Pulley
SKU:	12259	Material:	Aluminum
Type:	Die-cast	Size:	10 in.
Bore:	3/4 in. (.750)	Number of Belts:	Single
AX-34 – 34 in. Flat Plate Hoist Drive Belt
SKU:	12235	Material:	Molded black rubber
Type:	Cogged	Belt Size:	34 in.
Fits Hoist Pulley:	10 in.	Fits Motor Pulley:	2 in.
