Purchase AMERICAN ARMOR RHS SINGLE SWING OPENER
  • AMERICAN ARMOR RHS SINGLE SWING OPENER

    SKU: 312RHS
  • $1,399.00

    Georgetown Location: 9 in Stock
    League City Location: 8 in Stock
    If you are picking up your order, please verify the quantity needed is available at the pick up location by checking online or calling us at PH#512-930-4000
  •

  • For use with Single Gates

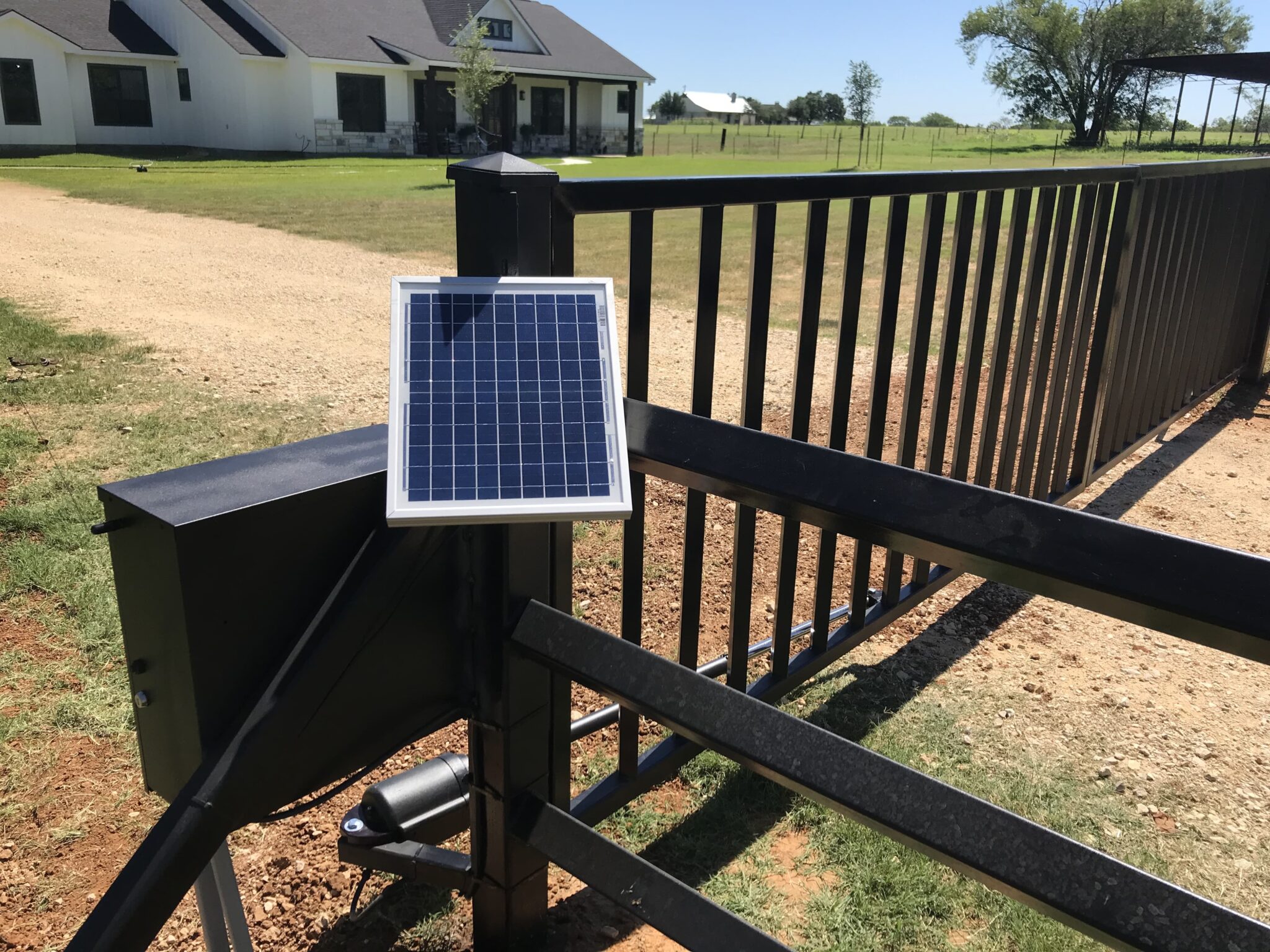

  • 12VDC Main Power allows for Green Energy Solar Applications
  • Optional 110V AC Power options available
  • For Use with up to 16 foot 500 pound Single Gates
  • Remote control opening and closing HomeLink compatible for Vehicle Programing
  • All Powder Coated Aluminum and Steel construction for Increased Durability
  • Easily Accessible Limit Switches for Quick and Easy Adjustment
  • All Metal Gearing for Longer Operating Life
  • Bolt On Hinge Post Attachment (Included)
  • Compatible with Non Monitored Safety Devices
  • Standard connections for Automatic Exit Devices and Keypads
  • 3 year limited warranty


  • Input Voltage: 12VDC
  • Output Voltage: 3 Separate
  • Connections 12VDC 1.5A
  • Operating Temp Range: -10 Deg F to 150 Deg F
  • Maximum Speed: 1 Foot per Second
  • Maximum Gate Weight: 500 lbs (800 lbs with Long/Heavy Gate Kit Accessory)
  • Maximum Gate Length: 16 Foot (20 foot with Long/Heavy Gate Kit Accessory)
  • Attachment Point Sizes: ½ INCH
  • Wireless Frequency: 300 Mhz
  • Standard (310 Mhz & 433 Mhz Available upon request)
  • Limit Switches: Sealed Contact Switches with Over Stroke Capability
  • Hinge Post Attachment: Bolt-On Standard (Weld-On Available)
★★★★★ ★★★★★
5/5 Stars out of 1 Review
Write a Review
1
0
2
0
3
0
4
0
5
1
Finally found a real heavy duty gate opener! ( Verified Buyer )
★★★★★ ★★★★★
ALLEN GLICK (Very rural New Mexico) | November 28th, 2022
Arm has 1/2 steel pivot plate at post end... It is not even in the same category as the heavily advertised units found ...,you know where! Holes on the pivot plate allow mounting to a steel post with u bolts, or with thru bolts to a very heavy wooden fence post. These are boxed and packaged with basic instructions for someone who knows what they're doing, it's not a handholding DIY manual, but All of the information is there, so I had no trouble at all. The basic unit comes with a 300 MHz garage door type receiver for a remote control. It is programmed with a dip switch. Not cheap but I think it will Outlast 2 to 3 of the cheaper box store openers..... Which typically lasts from 3 to 5 years... That is if they even work out of the box...
