CARTELL CP-4 FREE EXIT GATE OPENER

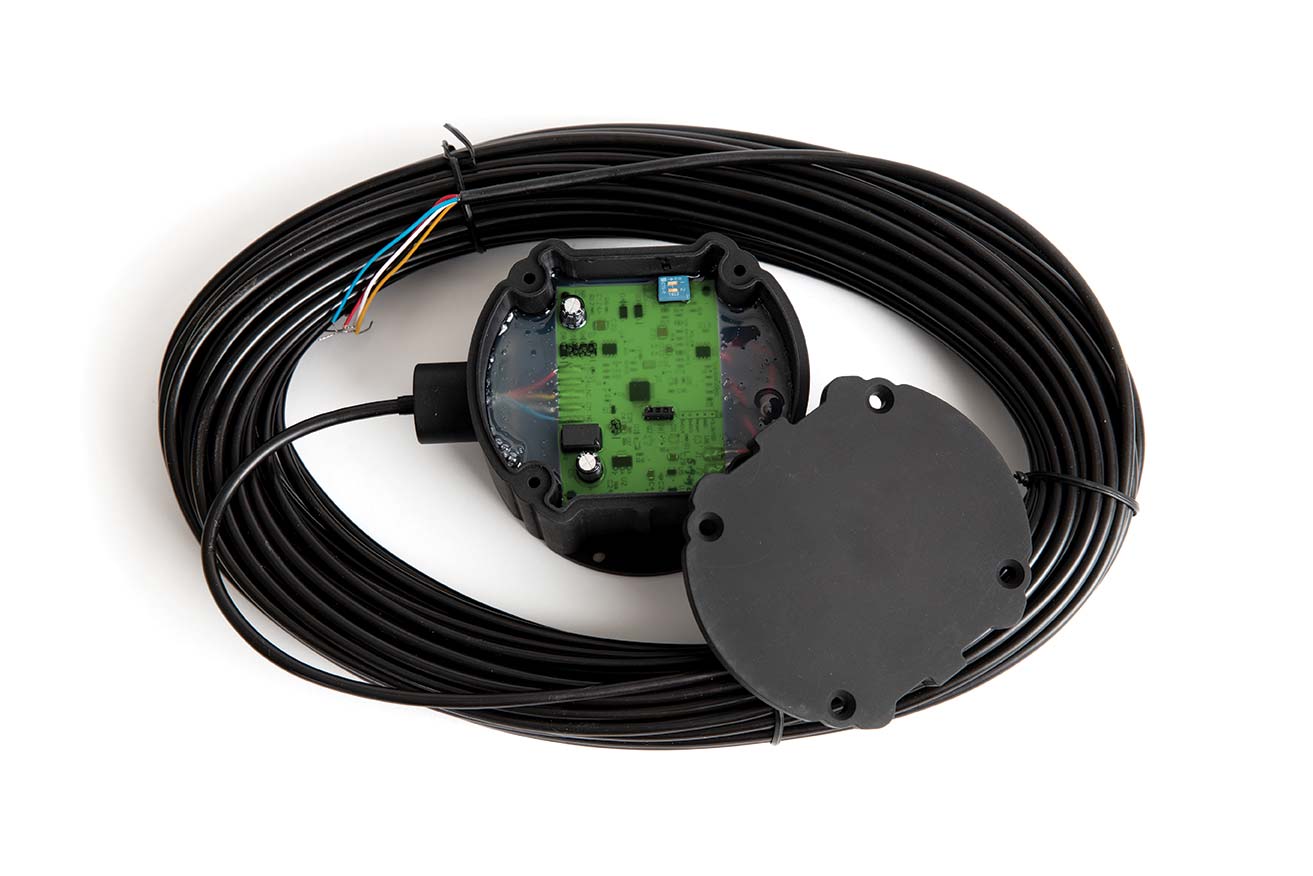

All-in-one unit without external circuit board. Hook wires directly to gate operator
SELF-CONTAINED SYSTEM WITH LOW STANDBY CURRENT
Open gates automatically as guests leave a property with this all-in-one system that works with electric or solar gates
Lowest standby current in the industry by 95%
For more information, see sell sheet.
TECH SPECS
Power Required: 8–24 VAC; 8–30 VDC
Standby Current: 30–70 microamps (μA) max.
Alarm Current: 40–50 milliamps (mA) max.
Relay Contacts: SPDT, floating, N.O. or N.C. (Form C)
Relay Contact Rating: 1 amp/24 VDC
(1 mA at 5 VDC min. load)
Relay Time: 2–3 seconds
Temperature Range: -25°F–140°F
Dimensions: 4.5 in diameter x 2.5 in H
(11.43 cm diameter x 6.35 cm H)
Slip Joint: 0.5 in L x 0.875 in ID
(1.27 cm L x 2.22 cm ID)
Weight: 5 lbs (2.27 kg) with 100 ft cable
