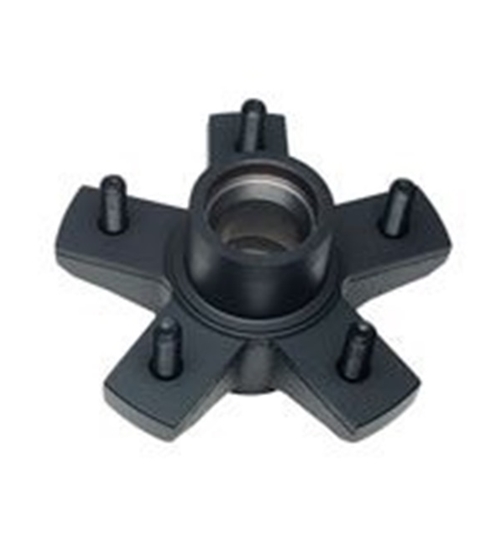

Dexter Hub W/ 5 on 5.5" Bolt Pattern For 3,500lb Axles
There is no need to worry about the races as they are already pressed
into the hub for you. This hub is designed for use with a #84 spindle.
Each hub has a capacity of 1,750 lbs. The
bearings, grease seal, grease cap, wheel nuts, spindle nut, and spindle
washer sold separately. Kit with hardware is available.
• Hub only
• 5 on 5.5" Bolt pattern
• 1 L44610 Outer Race (Already Pressed In) 1.98" OD
• 1 L68111 Inner Race (Already Pressed In) 2.361" OD
• Uses L68149(1.378" ID) and L44649(1.063" ID) bearings(sold separately)
To determine the bolt circle on hubs or wheels with an odd number of
bolt holes, measure from outside to center of the studs across the
pattern(bolt patterns are always measured in inches). Example: If you
were to number the studs 1, 2, 3, then you would measure from the
outside of stud 1 to the center of stud 3.
