Description

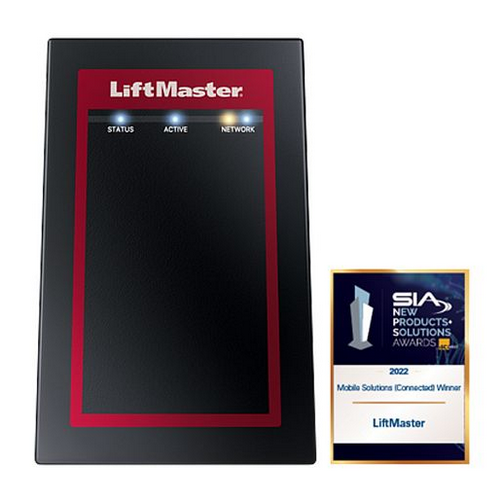

Smart Access 2-Door Controller cloud-based credentialed access control.

Key Features:

• myQ® Community Smart Access Control Software
• Controls up to 2
  Gates/Doors/Elevators/Commercial Door Operators each CAP2D.
• Easily Expandable Network through myQ® Community Web Platform.
• myQ Community app: Residents can
  unlock any authorized entrance / elevator
  / garage or virtually send guest passes
  from their smartphone at anytime.

Smart:

• Multiple-Entrance Control with myQ® Community Web Platform.
• Elevator Access Controls   a cost effective
  credentialed access solution through the myQ® Community app permitting access to the elevator
  and any floor.
• Eliminate Wiring between controllers in multiple-entrance applications with myQ® Community Web Platform.
• Universal Compatibility with 26-, and 30- and 37-bit Wiegand-compatible readers, receivers and RFID readers.
• Expansive Capacity for 25,000 active credentials stored locally so residents can enter even when the internet is down.
• Remote Programming and activity monitoring using myQ® Community Web Platform.
• Integrations - myQ® Community web platform streamlines tenant information management, enhancing property manager productivity and resident experience through an integration partnership with RealPage, Yardi, Entrata, and more.

Reliable:

• Easy to Install in new or existing properties.
• Backed-Up Storage in myQ® Community Web Platform ensures that databases are never lost.
• Power over Ethernet (PoE) allows for flexibility of device placement.

Secure:

• Email Alerts let you know when a suspended code is used or if an active code is being overused.
• Real-Time Activity Tracking with myQ® Community Web Platform.
• Cloud-Based Security keeps data protected and safeguards resident information.

Total Solution Accessories:

• CAPXLV Smart Video Intercom -L cloud-based access control for residents and guests in large-sized communities.
• CAPXM Smart Video Intercom -M cloud-based credentialed access control for visitors and guests in mid-sized communities.
• CAPCELL Cellular 4G/LTE Modem with Wi-Fi® makes it easy to connect CAPXL and CAP2D(s) anywhere (Not recommended for applications with video features).
• PPWR Passport Receiver compatible with all standard Wiegand Protocols.
• PPV3M/PPK3PHM/PPLK1-X Passport Remote Controls Visor and keychain remotes with unique credentialed IDs.
• KPR2000 Wired /Keypad and Proximity Reader single-entry, multifunction controller that supports up to 2,000 users.
• LMMC-MINI /multiCLASS® SE RP10 MINI Mullion proximity reader for credentialed access.
• LMPC2-ST Proxcard II® 1326 /Clamshell Card proximity card for credentialed access.

Capacities:

• 2 controlled gates / doors
• 25,000 local resident capacity
• 6,000 local event history (FIFO) offline from host
• Multiple, Holiday and Hold-Open Scheduling, including one-time and repeating exceptions

Power:

• 12V DC, Min. 1.5 Amps (transformer not included)
• PoE (802.3af) enabled network devices, 13 Watts max.
• UL® listed

Dimensions:

• 4.5" x 3" x 1.25"

Mechanics:

• Compact size mounts on standard single electrical-gang box or in a NEMA enclosure
• Led indicator lights communicate status
• Temperature Range: 31°F to 150°F (-35°C to 66°C)

Standard Specs:
Communication
Internet (Dynamic or Static IP)

• myQ® Community subscription required
• High speed
• DSL with at least 1 MB download speed
• Cellular (optional CAPCELL)

Input Ports:

• 2 Wiegand inputs
• 2 Request-to-exit (REX) inputs
• 2 Supervised inputs

Outputs:

• 2 Primary relays
• 2 Auxiliary relays

Warranty:

• 2 Year Warranty
