Details

ER2 Dual Motor Boat Lift Remote

The ER2 Dual Motor Boat Lift Remote makes it easy to control boat lift systems that use two motors to lift one boat, Swap out your wired drum switch for this remote control unit to make the operation of your lift easy.

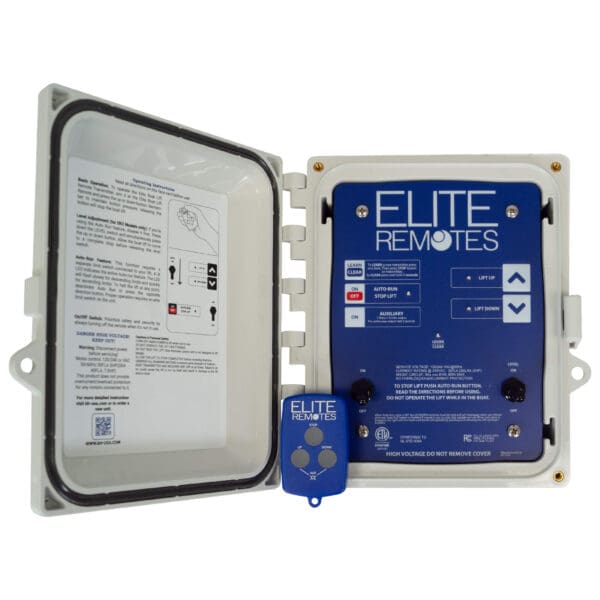

The Elite remote is designed for easy use and comes in a lockable, watertight cabinet. You can turn your lift on or off with a switch and use push-buttons for up and down movement directly from the cabinet, without needing the key fob.

The 3-button waterproof key fob works up to 300 feet away and floats. It sends a secure radio signal, so you don’t need a direct line of sight.

The Elite ER2 is the first boat lift remote designed for easy installation. BH-USA worked with manufacturers, installers, and electricians to create a remote you can install and wire without opening the unit. The Elite Remote has a pre-wired 14/5 cable for easy color matching to your existing motor using a junction box (NOT INCLUDED). It also comes with mounting brackets that attach to the back of the unit, allowing you to mount it on a wall or post without opening the enclosure. Clear instructions are included for most known boat lift motors, making installation easy, especially for Elite Brand motors.

The Elite Boat Lift Remotes are designed for Elite motors but can work with others too. The 220v comes wired from the factory with a GFCI plug (NOT THE 110v), and a motor wire “whip.” Each remote is tested with a boat lift motor to ensure it’s wired correctly before shipping. BH-USA provides a prewired control cable and step-by-step instructions, along with videos, to help you easily wire the remote to your existing motor using a junction box. Elite remotes are also compatible with motors from brands like Marathon, GE, Leeson, Regal Beloit, AO Smith, AMS (Hefty Hoist), American Power Hoist, and private-label motors from companies like HI-Tide, Tide Tamer, Golden, and Neptune.

The Elite remote cabinet replaces the existing drum switch. The Elite remote must be registered by end user to activate one year warranty. Never operate the boat lift while in the boat or on the lift. Always turn off MAIN POWER to control when not in use. Never operate the control unattended.

Specifications

Dimensions	8 in. W x 9.5 in. H x 6 in. D	Cabinet Seal	Watertight
Country of Origin	USA	GFCI Type	220V automatic reset
Control Cable	14/5 SJTW	Operating Frequency	60 Hz
Frequency	372.0 MHz	Amp Rated	15A
Auto Run	NO	Transmitter	One Included
Operation	Wireless key fob/control panel	Operating Range	Up to 200 ft.*
Keyfob Capacity	Learn up to 16 keyfobs	Mounting	Includes mounting tabs
Warranty	1 year with product registration

Note: *Operating range may vary based on environmental conditions. The Elite remote cabinet replaces the existing drum switch. The Elite remote must be registered by the end user to activate a one-year warranty. Never operate the boat lift while in the boat or on the lift. Always turn off MAIN POWER to control when not in use. Never operate the control unattended.
