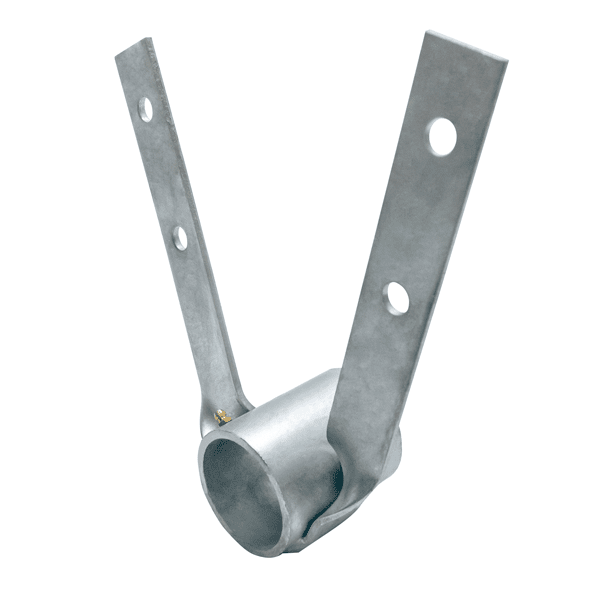

Heavy Duty Single V Pipe Support
The Heavy Duty Single V Pipe Support gives drive pipe extra support. Designed for center-mounted drive pipes. The brackets are twisted around the drive pipe sleeve and welded. The unique twist allows for adjustment of the support after its installed. Allows installers adjustment when lining up the supports on the drive pipe. The brackets spread into a v-pattern. Each bracket has (2) 1/2 in. punched mounting hole. Features a 9 1/4 in. spread from inner tip to inner tip of the v-brackets. The pipe sleeve measures 3 1/2 in. long. Features an outer diameter of 2 7/8 in. The inner diameter accepts up to 2 3/8 in. outer diameter drive pipes. The sleeve includes an installed 1/4 in. screw-in grease fitting. Made from 1/4 in. hot-dipped galvanized steel.
Center mounting only. Wood beam mounting fasteners are not included.
Specifications
| Type: | Single V Pipe Support | Heavy Duty Single V Pipe Support |
| Mount Type: | Wood beams | Wood beams |
| Mount Placement: | Center | Center |
| Support Type: | Hoist drive pipe | Hoist drive pipe |
| Weight: | 2.95 lbs. (each) | 3.45 lbs. (each) |
| Material: | Steel | Steel |
| Finish: | Hot-dipped galvanized | Hot-dipped galvanized |
| Sleeve Length: | 3 1/2 in. | 3 1/2 in. |
| Sleeve Thickness: | 1/4 in. | 1/4 in. |
| Sleeve Outer Diameter: | 2 7/8 in. | 2 7/8 in. |
| Sleeve Inner Diameter: | 2 3/8 in. | 2 3/8 in. |
| Bracket Spread: | 5 7/8 in. | 9 1/4 in. |
| Bracket Type: | V pattern | V pattern |
| Bracket Length: (per strap) | 6 in. | 8 1/2 in. |
| Mounting Holes: | 1 (each strap) | 2 (each strap) |
| Mounting Hole Size: | 1/2 in. | 1/2 in. |
| Greaseable?: | Yes | Yes |
| Grease Fitting Size: | 1/4 in. | 1/4 in. |
| Grease Fitting Type: | Screw-in | Screw-in |
| Fitting Placement: | Pipe sleeve | Pipe sleeve |
Always follow the BH-USA Overhead Boat Lift Guide. BH-USA does not recommend overhead boat lifts for boats weighing more than 12,000 lbs. Only use the full length of the pipe to connect both pipe supports.
Do not attempt to use two short pieces of the drive pipe.
Product Overview
- Twisted design for added strength
- 3 1/2 in. long pipe sleeve
- 1/4 in. pipe sleeve grease fitting
- V-bracket pattern
- (2) 1/2 in. mounting hole on each bracket
- 9 1/4 in. bracket spread
- Mounts to wood beams
- Fits 2 3/8 in. OD drive pipe
- Center mount support only
