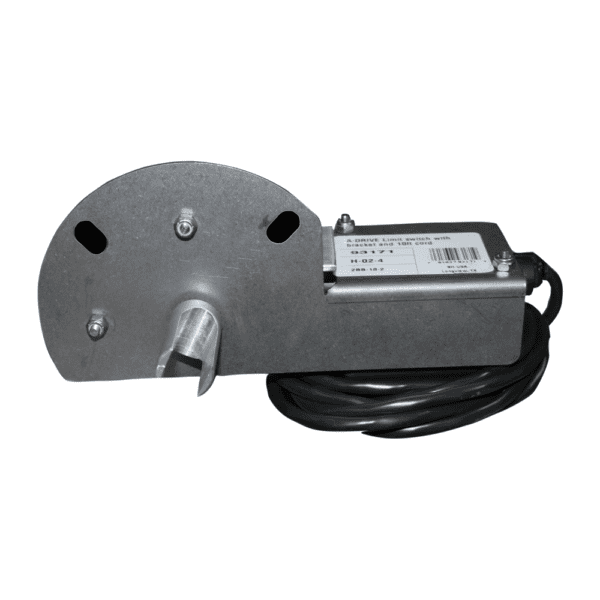

KALS BH-USA A-Drive Limit Switch
The KALS BH-USA A-Drive Limit Switch is a top-notch component for boat lift control systems. It works with all sizes of BH-USA A-Drive direct drive boat lift hoists. Specifically designed for models ending in “A” for auto stop features.
Key Features:
- Factory-wired auto stop for precise control.
- Compatible with Gem Remote Systems.
- Requires A-Drive direct-drive hoist with shaft made after August 2015.
- Comes with an 18-gauge, 3-wire harness for durability.
- FFC and ETL listed for safety and performance.
Installation:
- Easy installation by removing the dust cover and attaching the switch to the drive shaft.
- Requires a limit switch-ready driveshaft made after August 2015.
Specifications:
- 9 ft. 3 in. wire length for flexible wiring connections.
- Wire size: 18 gauge.
- Packaged in a 14 in. x 8 in. x 4 in. box, weighing approximately 3 lbs.
Manufacturer:
- Gem Remote Systems, known for high-quality remote control systems.
For assistance, wiring, and troubleshooting, refer to online diagrams on the manufacturer’s Technical Guides page.
Auto-Stop Systems
Auto-stop systems allow you to raise or lower your lift to a specific position at the touch of a button. Requires the installation of one of four “limit switches”. The limit switch you need depends on the type of motor(s) that you are using on the boat lift. Without auto-stop capability, you will have to hold the button down to start and stop the boat lift movement.
Installation Instructions
Simply remove the dust cover on the front of the A-Drive direct-drive hoist to expose the end of the drive shaft that will have a tab that fits the limit switch. The limit switch uses the existing bolts to mount the special bracket. Limit switch-ready driveshaft is a must-have.
The limit switch requires that the A-Drive direct-drive hoist use a BH-USA direct-drive shaft made after August of 2015. Only works for Gem Remote Systems.
Specifications
| Purpose: | Limiting Height by Switch |
| Wire Length: | 9 ft. 3 in. |
| Wire Size: | 18 Gauge / 3 Wire |
| Box Size: | 14 in. x 8 in. x 4 in. |
| Product Weight: | 3 lbs. |
| Manufacturer: | Gem Remote Systems |
Requires the A-Drive to use a BH-USA Drive Shaft made AFTER August 2015. |
|
Product Overview
- Compatible with all BH-USA A-Drive direct-drive hoists
- Works with Gem Remotes denoted with an "A" at the end of the product number
- The limit switch allows for a designated place for the lift to stop at "top" or "bottom"
- Online wiring guides available
- Only works on Gem Remote Systems
