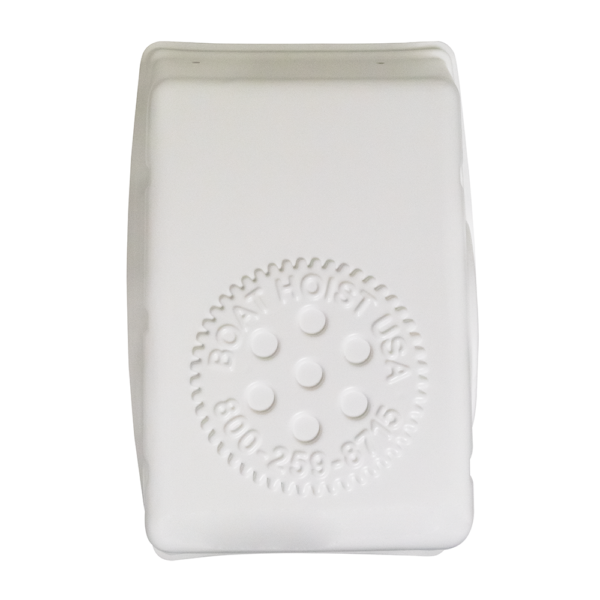

Flat-Plate Hoist Front Cover
Fits all flat-plate hoists made by BH-USA. Designed from high-density plastic. UV inhibitors are molded into the product. In harsh marine environments, the cover provides protection.
The cover snaps together with the flat-plate hoist back cover when paired together. An optional mounting kit can be used to secure the cover to the hoist for a snugger fit. It is available in three colors: white, black, and gray. A plain cover or a cover with the BH-USA logo is also available.
Cover Installation
- Remove the flat-plate hoist first. (The drive pipe should exit the back of the hoist.)
- Install the back cover, if applicable. (Ensure it lines up with the drive pipe hole.)
- Attach the front cover to the flat-plate hoist. (When paired with a back cover, it snaps together.)
- Attach the flat-plate hoist to the drive pipe again. (Ensure the back cover is between the hoist and the drive pipe.)
Specifications
| Front Covers | New Style Covers | |
| Dimensions: | 19 3/8 in. x 28 3/4 in. | 19 3/4 in. x 28 1/2 in. |
| Cover Depth: (Shallow) | 6 in. | 6 in. |
| Cover Depth: (Deep) | 11 in. | 11 in. |
| Weight: | 3.8 lbs. | 3.8 lbs. |
| Material: | High-density plastic | High-density plastic |
| Color(s): | Black / White / Gray | Black / Gray |
| Design: | No Logo / BH-USA Logo | No Logo / BH-USA Logo |
| Inhibitor Type: | UV | UV |
| Inhibitor Application: | Molded-in | Molded-in |
| Mounting Fasteners: | Not included | Not included |
| Requires Mounting Hardware: | No | Yes |
| Back Cover: | Not included | Not included |
BH-USA front covers will only work with BH-USA back covers and will not work with other brands. Front covers will work with existing stainless cover mounting hardware in most cases.
Product Overview
- Includes molded-in UV inhibitors
- Made from high-density plastic
- Provides protection from the harsh marine environment
- Snaps together when a back cover is added
- Comes in black, white, or gray
- BH-USA logo and no logo options
