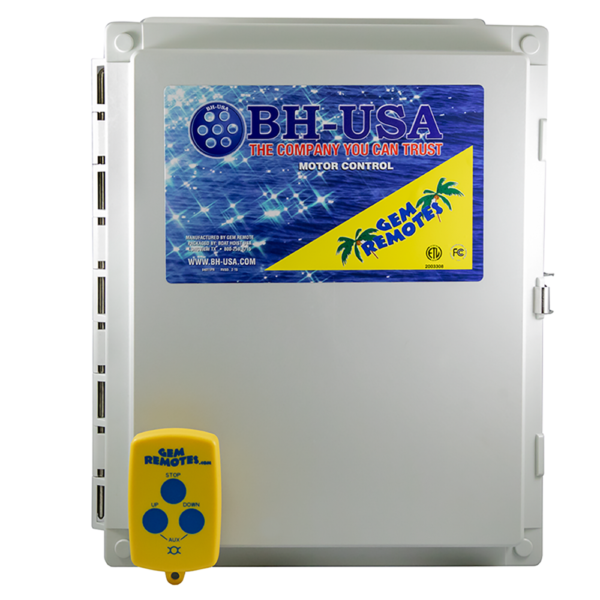

GR2 Double Motor Boat Lift Remote
The GR2 Double Motor Boat Lift Remote is a standard line of controls equipped with a 30 amp control relay. Controls two boat lift motors on one lift at the same time. Manual Up/Down Switch. Leveling Switch for Two Motor Systems. Accommodates optional multiple transmitters for the boat lift remote. The control box features a black water-resistant gasket. The control faceplate has raised buttons for operation and one toggle switch that regulates power to the remote.
Online wiring and troubleshooting guide diagrams for each model. FFC & ETL listed. Compatible with any single-phase electric boat lift motor. Remove the existing drum switch and easily install the remote. Includes diagrams for all known boat lift motors including the Elite Boat Lift Motor.
The 3-Button Transmitter is sold with Gem Remote systems since March 2007. Water-resistant and floats. The transmitter works on radio frequency not the line of sight. Operates up to 300 feet away from the control box. Frequency 372. 2.8 in. x 1.8 in. remote dimensions. Includes (2) 3V batteries (CR2032). Will not work with units pre-March 2007.
Specifications
| Weight: | 8 lbs |
| Box dimensions: | 8 1/2 in. L x 6 in. W x 10 1/2 in. H |
| Shipping box dimensions: | 13 in. x 11 in. x 7 in. |
| Remote Transmitter Size: | 2 1/2 in. x 1 1/4 in. |
| Motors Controlled: | Two Motors |
| Dual Voltage: | 110v / 220v |
| Transmission: | Radio (not line of sight) |
| Lockable Case: | Yes |
| Leveling Switch: | Yes |
| Max AMP: | 30 AMP Control Relay |
| Max range: | 300 ft |
| Compliant: | FCC & ETL |
| Warranty: | 1-year Manufacturer’s Warranty |
Product Overview
- On/Off Security Switch
- Manual Up/Down Switch
- Leveling Switch for Two Motor Systems
- Three Button Hand Held Radio Transmitter (remote control)
- The unit can be wired at 110 or 220V AC
