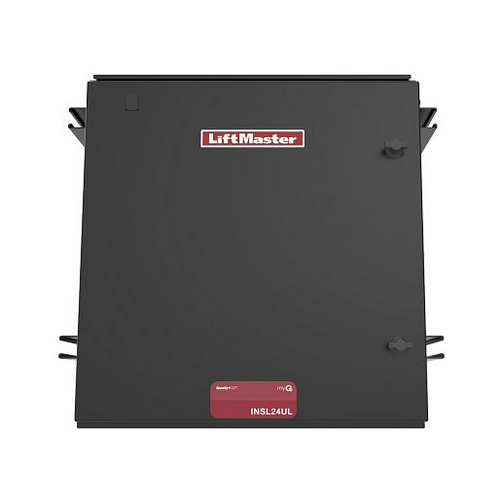

    SKU: 309INSL24UL
    No reviews yet. Write a review.
  • $2,750.00

    Georgetown Location: 4 in Stock
    League City Location: 4 in Stock
    If you are picking up your order, please verify the quantity needed is available at the pick up location by checking online or calling us at PH#512-930-4000

    Bulky Item - Requires Custom Freight Quote




Move Industrial gates up to 2,200 lbs. at 1 ft./sec.
Continuous-duty gate operation built with a custom industrial oil-bath gear box
Custom Industrial brushless DC motor

Enclosure Lockable, Weatherproof 14g NEMA 3R Steel Cabinet

Variable cycle speed adjusts to meet application needs from .5 ft./sec. to 1 ft./sec.
Smooth start/stop operation and mid-travel reversal extend operator hardware life.
#50 industrial chain provides a pull strength of 2x the gate weight.

Manual Disconnect with direct mechanical linkage with latch
Warranty 5 years



Powered by myQ® for full insight and control over community and facility access points. Improve warehouse efficiency and productivity with Smart Facility Access.* Monitor and control multiple communities with Smart Community Access.

Two programmable auxiliary relays accommodate more accessories.
Wireless dual-gate communication synchronizes gate operation and eliminates costly trenching; set speed independently if needed.


Safe and Secure

Quick close and anti-tailgate quickly secures property, preventing unauthorized access.
Posilock® automatically closes the gate when it is pushed from the closed limit.
UL® listed gate operator with monitored safety entrapment protection devices.


Included Accessories

LMRRUL Monitored Retro Reflective Photo Eye reliable retro-reflective photo eye now with heater and wide beam, engineered to stay aligned; max. Range: 50 ft.
S505AL Monitored Small Profile resistive edge pressure-sensitive edge senses obstructions.


24VDC brushless continuous-duty motor
Operator Duty Rating: high-cycle, high-temperature continuous duty
Direct Drive
Chain: #40 Industrial


120/240V single-phase
Accessory Power: 24VDC 1 A max. output; switched and unswitched power

Optional Kit (3PHCONV) to convert a 3-phase input voltage of 208/240/480/575VAC to an output voltage of 120VAC.

Solar-Ready, Ultra-Reliable System delivers power when and where you need it (LMRRUL/LMTBUL - heater option not recommended for solar applications).

Industrial Grade Design
Chassis: Constructed with 1/4 in. Steel, Powder Coated
Housing: powder-coated, 14-gauge steel oil -tight, weatherproof NEMA 3R lockable cabinet

UL® Usage Classification: II, III, and IV
Operator Weight: 129 lbs.

Height: 30.1”
Width: 27.5”
Depth: 17.1”

Variable Gate Speed:
.5 ft to 1 ft. per second

Standard Features:

Inherent Reversing Sensor detects obstructions and reverses gate.
Manual Disconnect allows gate to be opened manually when released.
Monitored Safety Inputs 3 main board, 3 expansion board.
Security+ 2.0® On-Board Radio Receiver:
up to 50 remote controls (unlimited with 811LMX/813LMX).
LED Diagnostic Display simplifies installation and troubleshooting
Programmable Auxiliary Relays: 2 relays make adding additional features easy.
HomeLink® Compatible version 4.0 or higher (may require an external adapter depending on the model and year of your vehicle. Visit for additional information).


HomeLink® Compatible
Compatibility Bridge™ (not included) necessary for certain vehicles. Visit to find out if a Bridge is needed.
HomeLink® is a registered trademark of Gentex Corporation.
