Power Input: 12 or 24 Volt AC or DC
Rugged metal housing
Eye rotates up to 180 degrees
Range 65 feet

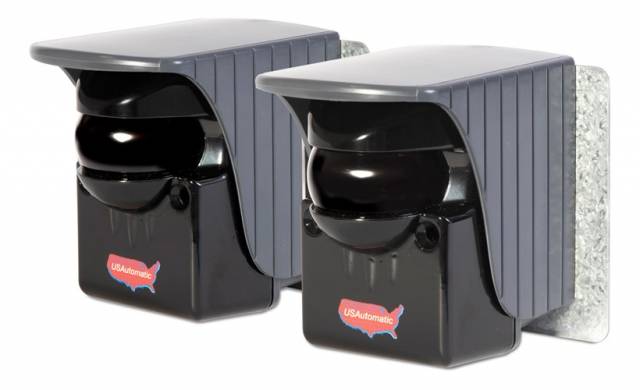

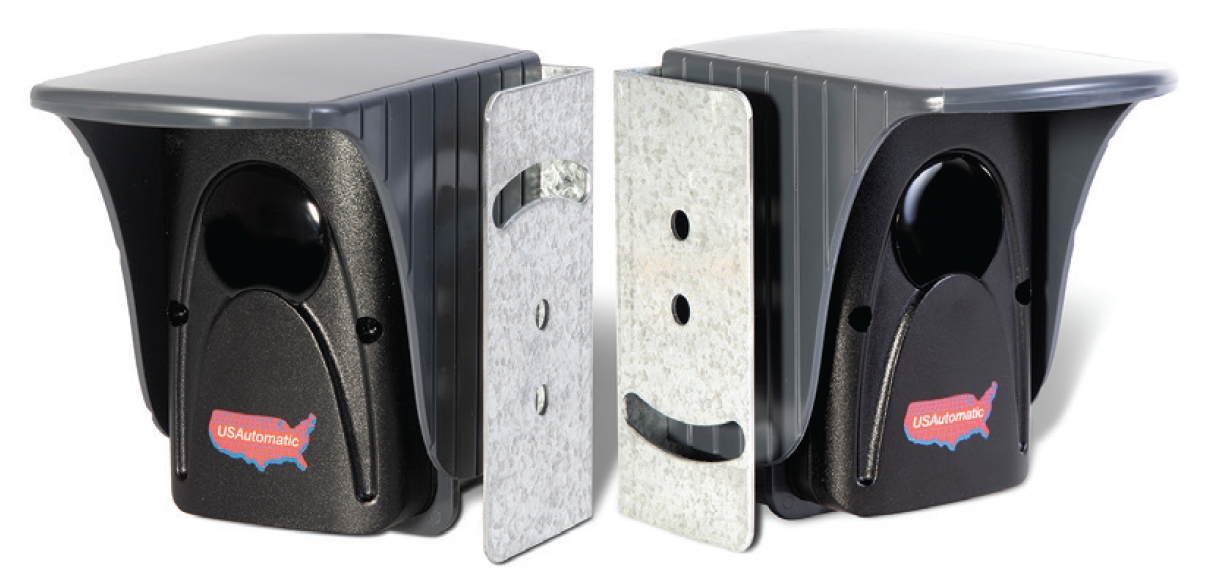

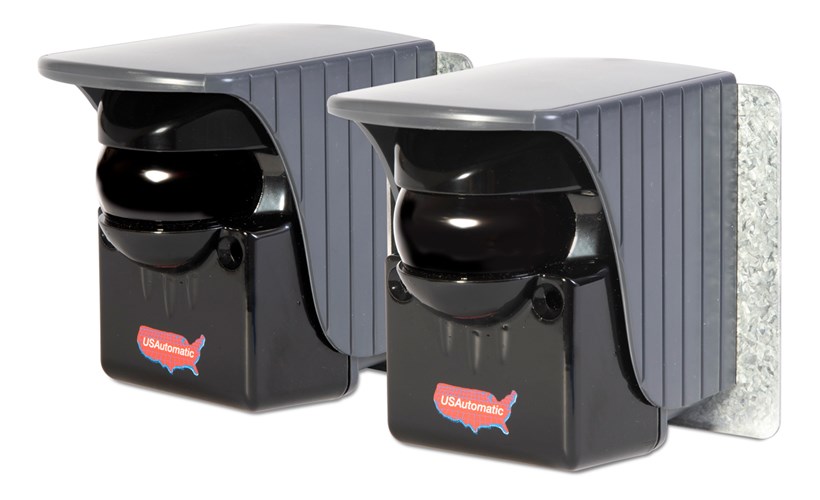

The infrared photo eyes are a People and Property safety device
intended for use with automatic gate operating systems. Swing gate
operators require at least one external monitored entrapment device
for gate operation and Slide gate operators require at least two
external monitored entrapment devices (one for each direction) for
gate operation per UL325 the standard for gate operator safety.
See gate operator installation manual.

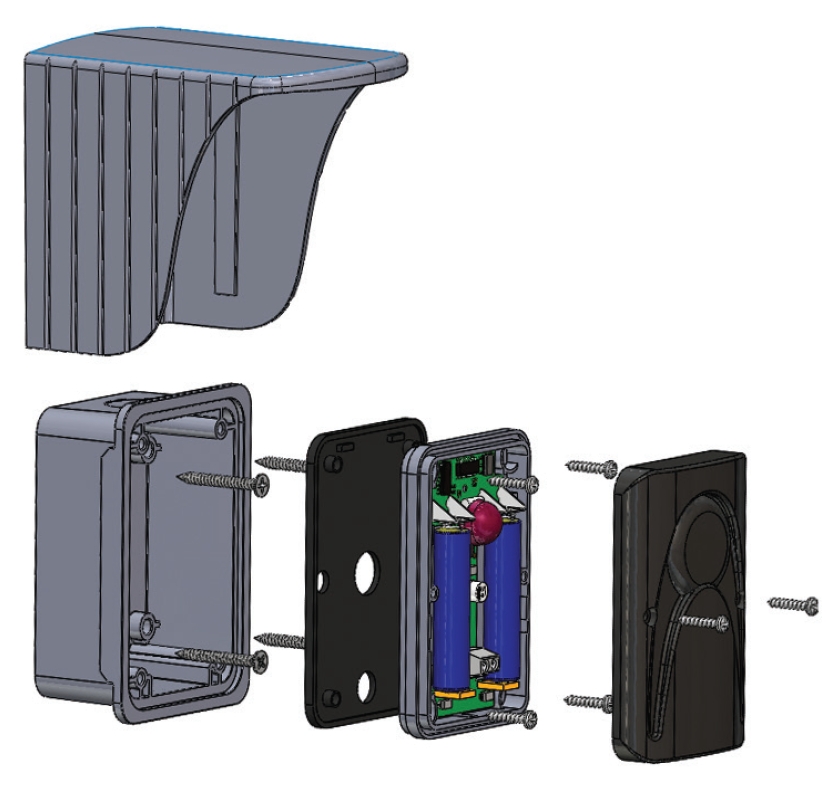

The transmitter can be powered by two 3.6 vdc lithium batteries
(model - ER14505) or it may be hard-wired to the gate operator
control board. The expected battery life should exceed 1 year.
Rated range up to 42 feet / 13 meters in most conditions.
