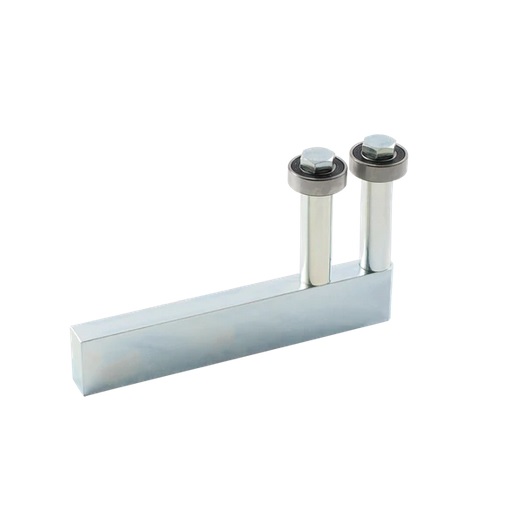

Shut It® Hardcore™ Gate Guide
Replaces the industry standard guide rollers• Guide assembly welds to the endpost
• Suitable for L track guides
• Standard and extended models available
• Extended version ideal for gradients through run distance of gate
• Super hard steel
• Zinc finish
The HardCORE Guide Assembly is a smartass design by SHUT IT that
replaces the industry standard guide rollers. Simply weld a 21⁄2 x 21⁄2”
(64 x 64mm) angle iron to your gate and attach the Guide Assembly to
the end post. The standard version is ideal for installations that do
not have grade variations through the run distance of the gate while the
Extended version is ideal for installations that have grade variations
through the run distance of the gate.
| Brand |
Shut It™ HardCore
|
| Product Code |
CI2300-CI2350
|
| Gate Application |
Driveway Gate - Double, Driveway Gate - Single,
Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy
Gate
|
| Gate Material |
Steel/Ornamental Iron
|
| Approx Gate Size |
6ft W x 8ft H (1.5m x 2m)
|
| Gate Frame/Post Shape |
Square-to-Square
|
| Min Post Size |
1½"+ (38mm)
|
| Fixing Method |
Weld-On
|
| Color/Finish |
Zinc
|
