10 lb. Split Lead Cable Weight

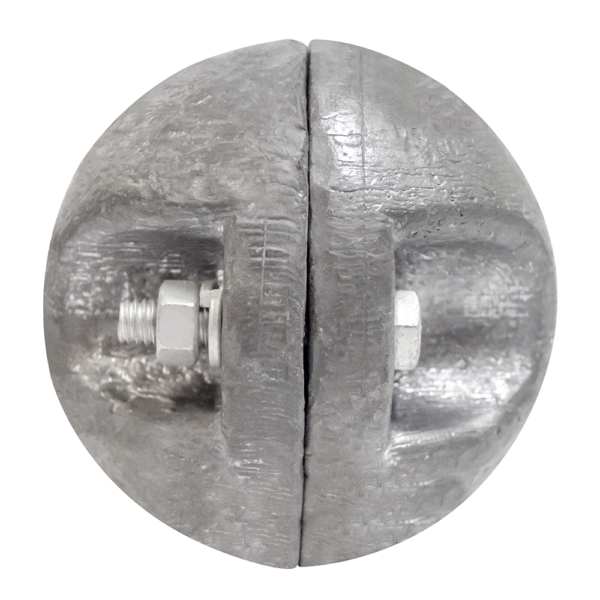

The cable weight is a 4-inch ball-shaped lead piece with a split design. It’s crafted to fit cables up to 5/16 inches in size using a clamp with a shallow groove. Securing it are two bolts, each measuring 5/16 inches by 1 1/2 inches, and they have a hot-dipped galvanized finish. While the large center hole isn’t for the cable, it’s meant for attaching the weight to aluminum beams or strap hangers. Additionally, the weight includes cable grooves designed for clamping to both sides of the cable.
Specifications
| Material: | Lead | Type: | Split |
| Style: | Ball | Size: | 4 in. L x 4 in. W x 4 in. H |
| Accepts: | Up to 5/16 in. cable | Cable Type: | Clamp (w/ shallow groove) |
| Fasteners: | 2 | Fastener Type: | Bolts |
| Fastener Finish: | Hot-dipped galvanized | Fastener Size: | 5/16 in. x 1 1/2 in. |
The large hole in the center is not used for the cable but for bolting weight to aluminum beams or strap hangers. In the cable weights, cable grooves have been cast into them so that the cable weights can clamp to both sides of the cable.
Product Overview
- Adjustable split design for customized cable tension.
- Durable lead construction ensures long-lasting performance.
- Cable grooves provide secure clamping on both sides.
- Compatible with up to 5/16" diameter clamp-style cables.
- Includes galvanized fasteners for easy installation.
- Versatile application with large center hole for bolting.
- Allows for adding multiple weights to pre-installed cable.
- Prevents cable bunching and maintains straight alignment.
