A-Drive 40:90 Double Worm Reducer

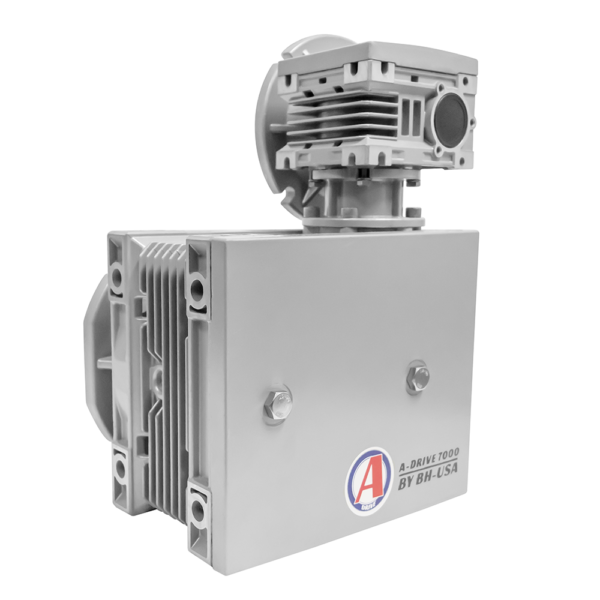

The A-Drive 40:90 Double Worm Reducer Gearbox is a direct-drive gearbox designed with a double worm gear reducer. Featured on the 7,000 lb boat hoist of the A-Drive series. The 7,000 lb A-Drive boat hoist is powered by a 1 1/2 HP wired motor.
The gearbox housing is made of solid aluminum with a marine-grade finish. The gearbox ratio is 450:1. This gearbox includes bronze-on-steel gears. The enclosed gears are permanently lubricated with BH-USA gear grease. No leaks are guaranteed. Includes cast flange mount for the output shaft. Stainless steel fasteners are used.
This gearbox works on both overhead boat lifts and pile mount boat lifts, provided that the appropriate mounting plate is used. Attaching the direct drive boat hoist to the boat lift drive pipe requires a hardened output driveshaft.
The hardened driveshaft is not included with the reducer gearbox.
Specifications
General Specifications |
|||
|---|---|---|---|
| Gearbox Type: | Double Worm Reduction | Gear Type: | 40:90 (High Efficiency) |
| Weight: | 38.3 lbs. | Case Material: | Cast Aluminum |
| Gearbox Length: | 12.42 in. | Box Type: | Fully Enclosed |
| Gearbox Width: | 7.56 in. | Lube: | Specialty-blended Grease |
| Gearbox Height: | 14.57 in. | Warranty: | 5 Years |
Technical Specifications |
|||
| Actual Ratio: | 450:1 | Output Shaft: | 1.25 in. |
| Motor Mount Type: | NEMA 56c | Input Motor Shaft: | 0.625 in. (5/8) |
| Pipe Flange Box Length: | 9.37 in. | Pipe Bolt Mount Hole-to-Bolt: | 4.59 in. |
| Pipe Flange Box Width: | 7.58 in. | Motor Mount Hole-to-Hole Mount: | 4.15 in. |
| Pipe Flange Box Height: | 8.11 in. | 1 1/2 HP Output Torque: | 7.399 in. / lbs. |
| Motor Mount Bolt Holes: | 4 | Motor Mount Bolt Size: | 0.4375 in. (7/16) |
Product Overview
- Made from solid aluminum
- 450:1 gear ratio
- Bronze-on-steel worm gear
- Permanently lubed with a specially blended grease
- Uses all stainless steel fasteners
- 7,000 lbs. straight lift capacity (w/ 1 1/2 HP electric motor)
- Able use with pile mount lifts and overhead lifts (with correct mounting plate)
- 5 Year Manufacturers' warranty
