ELITE 1.5hpSTAINLESS C-FACE MOTOR ONLY

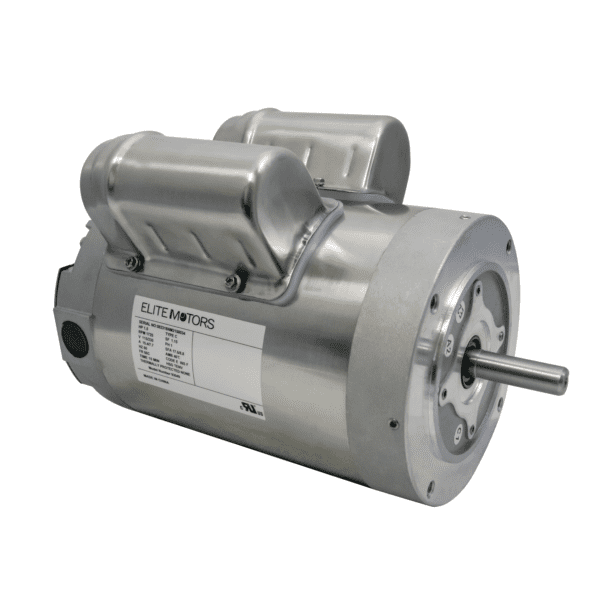

1.5 HP Elite TENV Stainless Boat Lift Motor

The 1.5 HP Elite TENV Stainless Boat Lift Motor is a single-phase, dual-voltage boat lift motor. The motor is a baseless motor that can be mounted directly onto gearboxes, such as the A-Drive and E-Drive gearboxes, without needing a separate base. Made from stainless steel housing and features aluminum end plates that resist corrosion and rust. The heavy marine-grade gasket on the stainless steel capacitor housing helps keep water and dust out. Easy to wire with standard yellow T-Wires and works with any known drum switch or boat lift remote.

The 1.5 HP Elite TENV Stainless Boat Lift Motor can be used on any known Boat Hoist with standard C-Face or C56 flange mount including the BH-USA A-Drive, E-Drive Golden Lift Sea-Drive, AMS Hefty Hoist E-Drive and A-Drive and also can be used on hoists used  by Deco Lifts, Hi-Tide Lifts, Neptune Lifts and Hurricane Boat Lifts  All Elite Boat Lift Motors come with detailed wiring instructions for Elite, Breams and Salzer brand Drum Switches.  All Elite Boat Lift Motors are fully compatible with GEM Boat Lift Remotes, Galaxy Boat lift Remotes, TED Boat Lift Remotes and Elite Boat Lift Remotes. The 1.5 HP Elite TENV Stainless Electric Motor is equivalent to the Leeson boat hoist motor #6439191252

This motor has a power of 1.5 horsepower (HP) and can run on either 115 volts or 230 volts. At 115 volts, it draws 15.4 amps, and at 230 volts, it draws 7.7 amps. It rotates at a speed of 1725 revolutions per minute (RPM) with a frequency of 60 Hz. It fits into frame 56c and has a service factor of 1.15. It can handle up to 17.6 amps at 115 volts or 8.8 amps at 230 volts. It’s designed to withstand temperatures up to 40°C for a maximum of 15 minutes. The housing is Totally Enclosed Non-Ventilated (TENV) with a code of E. It has insulation class F and an IP rating of 54. it is also recognized by UL with a C-UL-US stamp.
