Bremas Rotary Cam Boat Lift Switch
Bremas Boat Lift Switch

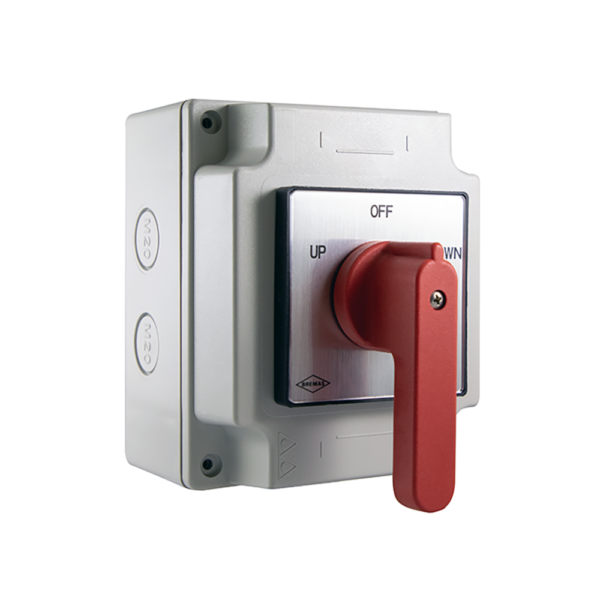

The Bremas Boat Lift Switch is a cam switch that controls the movement of a boat lift. Features a durable molded plastic housing and a gasket sealed box. UL, NEMA, CE, SA compliant. Easy to wire terminals with locking screws. Wiring directions for most brands of boat hoist motors included. Compatible with reversing motors. The switch comes complete with housing, drum switch, and lift handle. 20 amp max. Serie A 1700-A CA0200034V. Ith25A Ui690v 50/60hz. Made in Italy.
Wiring Direction Brands:
Elite Motors
Leeson Motors
Leeson Electra-Gear Motors
Marathon Motors
GE Electric Motors
AO Smith Motors
AMS Motors
Maintained (lock-on) vs. Momentary (spring-loaded)
The maintained (lock-on) drum switch stays in the position you place the handle until manually turned off. It does not have guide arrows on the front plate. The momentary drum switch handle springs back to the off position when it is released. It has guide arrows on the front plate. The momentary (spring-loaded) switch is the safer choice because it won’t operate unless someone is holding the handle.
| Use 75°C copper (Cu) Conductor only and wire ranges No. 10-14-16 AWG. Stranded or solid. Tight torque terminal screw M3, 5, 8, 9 lb. in. (1 Nm) |
Specifications
General Specifications |
|||
|---|---|---|---|
Maintained |
Momentary |
||
| Model #: | CA0200034I-B96IQ6R | Model #: | CA0200037I-B96IQ6R |
| Retail SKU #: | BH09014 | Retail SKU #: | BH09015 |
| Weight: | 1.25 lbs. | Weight: | 1.25 lbs. |
| Box Color: | Light Grey | Box Color: | Light Grey |
| Housing Length: | 4.5 in. | Housing Length: | 4.5 in. |
| Housing Width: | 3.5 in. | Housing Width: | 3.5 in. |
| Housing Height: | 4.5 in. | Housing Height: | 4.5 in. |
| Handle Color: | Red | Handle Color: | Red |
| Handle Length: | 3.0 in. | Handle Length: | 3.0 in. |
| Handle Width: | 1.1875 in. | Handle Width: | 1.1875 in. |
| Handle Height: | 1.3125 in. | Handle Height: | 1.3125 in. |
| Country of Origin: | Italy | Country of Origin: | Italy |
Technical Specifications |
|||
Maintained |
Momentary |
||
| Amps: | 20 | Amps: | 20 |
| VAC | 600 | VAC | 600 |
| Torque: | Tight | Torque: | Tight |
| Certification: | EN 60947-3 | Certification: | EN 60947-3 |
| Certification: | CE | Certification: | CE |
| Certification: | C-UL-US Listed | Certification: | C-UL-US Listed |
Cam Diagram |
|||
| — | 230v | 400v | 690v |
| AC3-kW(A) 1 ph | — | 3.7(12) | — |
| AC3-kW(A) 3 ph | 4(13) | 7.5(14) | 7.6(8) |
| AC-23-kW(A) 1 ph | 3(17) | — | — |
| AC-23-kW(A) 3 ph | 6.5(17) | 9(9) | 9(9) |
VAC Diagram |
|||
| HP/V | 1 ph | 3 ph | — |
| 120 | 1.6 | — | — |
| 200 | — | 5 | — |
| 240 | 3 | 7.5 | — |
| 480 | — | 10 | — |
| 600 | — | 10 | — |
