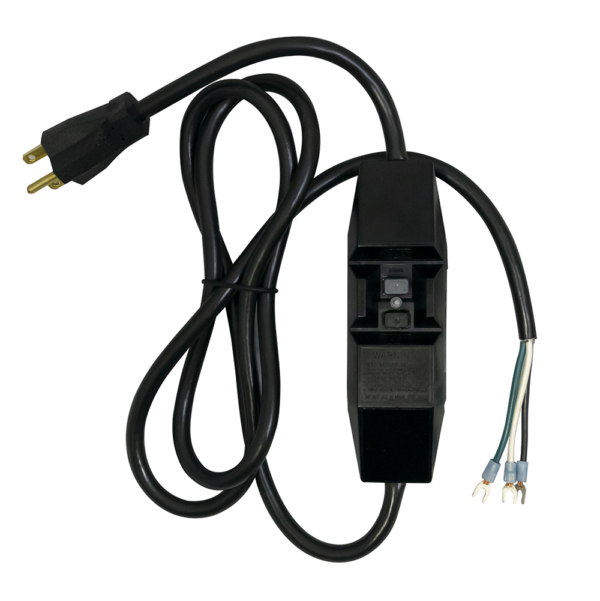

220v GFCI Wire Harness
The 220v GFCI Wire Harness is UL listed, Class-A Rainproof, and made of marine-grade electrical components. Compatible with all boat lift motors. The GFCI (ground fault circuit interrupter) features the GFCI in line with the wire harness. Allows two motors to use side-by-side plugs. Equipped with test and reset buttons. Proper installation is required. GFCI protects the user from severe electrical shock from electrical short, voltage leak, or water detected.
What is a GFCI?
A ground fault circuit interrupter (GFCI), or Residual Current Device (RCD) is a circuit breaker. This device reduces the risk of electric shock. It shuts off an electric power circuit when it detects that current is flowing along an unintended path, such as through water or a person.
Specifications
GFCI Wire Harness Specifications |
|||
|---|---|---|---|
| Manufacturer: | Southwire Company | Plug Type: | US 240 Volt NEMA 6-15 |
| VAC: | 240 | Hz: | 50/60 |
| Amps: | 15 | Watts: | 3600 |
| Type: | Rainproof Class A | GFCI Type: | In-line |
| Cable Type: | 14/5 SJTW | GFCI to Plug: | 4.5 in. |
| Cord Diameter Range: | 0.28 – 0.65 in. | Country of Origin: | Honduras |
| UL: | Listed | CSA: | Certified |
| Reset Button: | Yes | Reset Type: | Automatic |
| BH-USA SKU: | 12228 | Catalog #: | 25090 |
Product Overview
- UL listed electrical components
- Complete in-line 220v GFCI with 6 ft. control cable
- Built with insulated black wire cover
